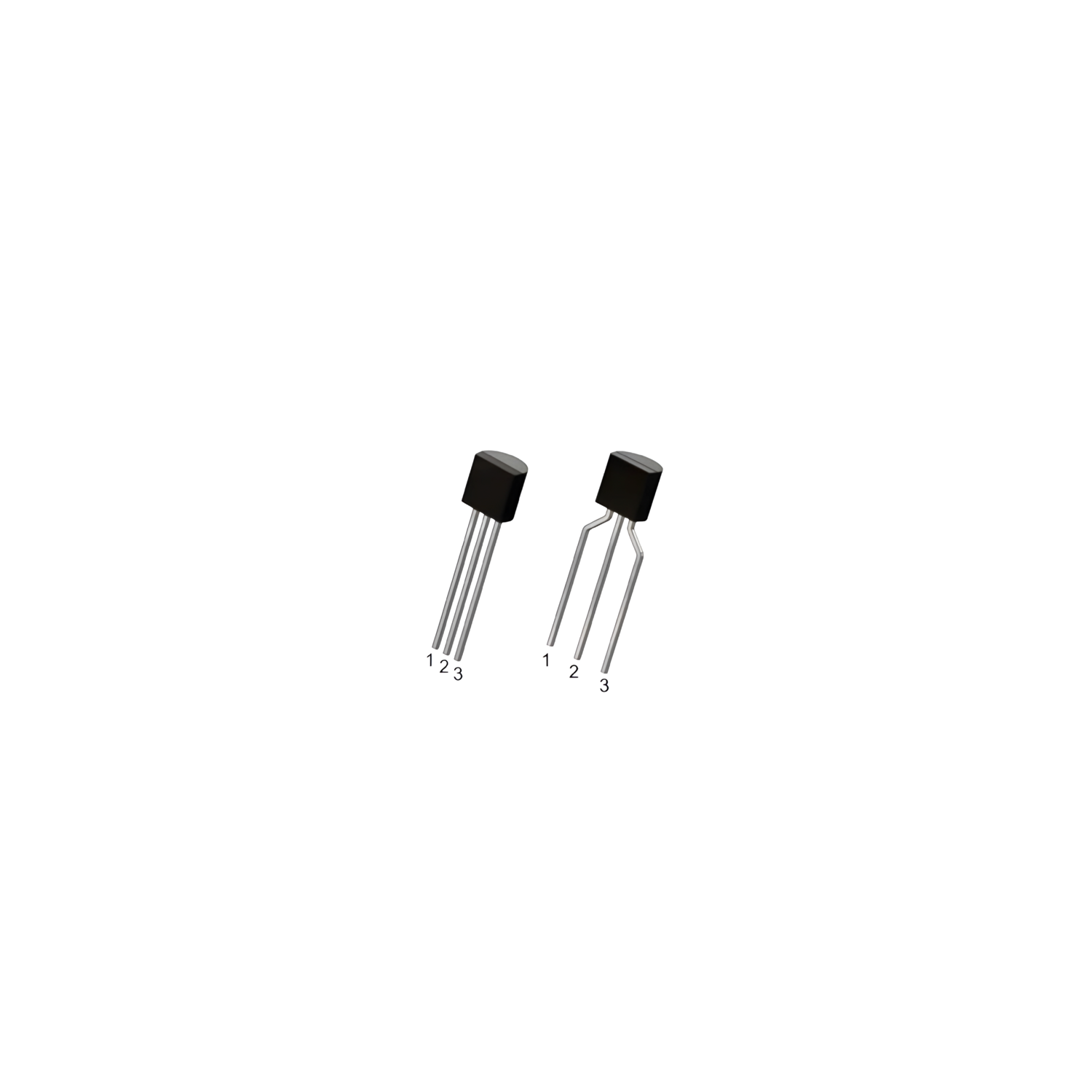

BC168 Transistör NPN TO-92

BC168 DATA SHEET

Type Designator: BC168

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 20 V

Maximum Collector-Emitter Voltage |Vce|: 20 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 85 MHz

Collector Capacitance (Cc): 5 pF

Forward Current Transfer Ratio (hFE), MIN: 120

Noise Figure, dB: -

Package: TO92



Bipolar Transistör (BJT) İçin Muadil Ürün Nasıl Seçilir?

Birçok bipolar transistör (BJT) vardır. Bunların çoğunun parametrelerinde benzerlik olan ve birbirinin yerine kullanılabilen birçok muadili bulunmaktadır. Bu nedenle transistör değiştirme arayışı genellikle herhangi bir zorluğa neden olmaz. Tabii ki en iyi seçenek, yanmış transistörü aynı şekilde değiştirmektir, ancak bozulan transistörü bulmak imkansızsa, yerine uygun bir muadil transistör seçmekte herhangi bir zorluk olmayacaktır.

Nelere Dikkat Etmelisiniz?

PDF-Datasheet'i açarak, öncelikle transistör tipini öğreneceğiz - bipolar veya alan efektli, p-n-p veya n-p-n, gövde çerçeve tipi, pinouts konumu.

Sayısal parametreler, her şeyden önce maksimum akım ve voltajdır. Transistör değiştirmek için muadil ürün seçerken maksimum akımı ve voltajı, orijinalinden büyük veya ona eşit olmalıdır.

Bipolar transistör için önemli bir parametre hFE akım transfer katsayısıdır. Transistör anahtar devrelerdeyse (açma-kapama talepleri) hFE gerekli katsayıya eşit veya daha büyük olmalıdır. Analog güçlendiricilerde veya benzeri cihazlarda ise hFE'ye yakın olması gerekir. Güç kaynaklarında, analog transistörler yakın hFE ile seçilmelidir. Ayrıca (çalışan transistör çift olarak değiştirilmelidir).

Cihazı açtıktan sonra transistörün sıcaklık modunu (ısıtma) kontrol etmek gerekir. Transistör aşırı sıcaksa, sorun hem transistörde hem de çalışmayan başka elemanlarda olabilir.

Bipolar Transistör (BJT) Kod Çözmenin Ana Parametreleri:

Yarı iletken malzeme: çoğu transistör germanyum veya silikon olacaktır. Diğer tipler geleneksel cihazlarda kullanılmaz.

Polarite: Diğer polaritenin bir transistörünü taktığınızda başarısız olur. Yani NPN transistör yerine PNP transistör kullanılmamaktadır.

Pc - Maksimum Güç Kapasitesi: Seçilen transistörün yeterli gücü dağıtabildiğinden emin olmak gerekir. Bu parametre, transistörün maksimum çalışma sıcaklığına bağlıdır - sıcaklık arttığında maksimum güç kapasitesi düşer. Dağıtma gücü yetersizse, transistörün diğer özellikleri kötüleşir, örneğin kollektör akımında keskin bir artış, bu da daha fazla ısınmaya ve çıkış transistörünün arızalanmasına neden olur.

Vcb - Arıza gerilimi p-n bağlantı değeri ile tanımlanan maksimum izin verilen kollektör-taban gerilimi. Kolektörün akımına ve transistörün sıcaklığına bağlıdır.

Vce - İzin verilen maksimum toplayıcı-yayıcı voltajı. Uce'nin üçüncü bir kollektör devre voltajına sahip olması gerekir. Şema talebi bir röle bobini ise diyot gibi transistör aşırı gerilimlerine karşı koruma sağlamak gerekir.

Ic - Maksimum DC toplayıcı akımı. Transistör akımı da %30'dan az olmayan bir rezervle alınır. Değeri, transistör sıcaklığına veya ortama bağlıdır.

Tj - PN-bağlantı maksimum sıcaklığı. Bu parametre, transistörün aşırı koşullarda, örneğin sıcaklığının 100 dereceye ulaşabileceği bir arabada çalışıp çalışmadığını dikkate almak önemlidir.

ft - Akım transfer katsayısının sınır frekansı - ortak emitörlü şemadaki akım transfer katsayısı modülünün bire yöneldiği frekans. Bu parametre önemlidir, çünkü giriş sinyalinin artan frekansı ile güçlendirme katsayısı azalır.

Cc - Toplayıcı bağlantı kapasitesi. Transistör hızı bu parametreye bağlıdır (yani ne kadar düşükse o kadar iyi).

hfe - Statik akım transfer katsayısı - Iс kollektör akımının Ib baz akımına oranı.

Sadece en önemli transistör parametreleri yukarıda açıklanmıştır. Üretici, veri sayfalarında birçok ek parametre belirtir: toplayıcı-yayıcı doyma gerilimi, izin verilen maksimum toplayıcı darbe akımı, ters emitör akımı, izin verilen maksimum taban akımı, vb.



TRANSİSTÖR KARŞILIKLARI

↓ Type	Code	Mat	Struct	Pc	Vcb	Vce	Veb	Ic	Tj	Ft	Cc	Hfe	Caps
2N5832		Si	NPN	0.625	160	140	5	0.6	150	100	4	175	TO92
2N6224		Si	NPN	0.36	60	60	5	0.1	150		4	150	TO92
2N6428		Si	NPN	0.625	60	50	6	0.2	150	100	3	200	TO92
2N6428A		Si	NPN	0.625	60	50	6	0.2	150	100	3	300	TO92
2N6429		Si	NPN	0.625	55	45	6	0.2	175	100	3	400	TO92
2N6539		Si	NPN	0.625	60	40	6	0.2	150	200	4	250	TO92
2N7051		Si	NPN	0.625	100	100	12	1.5	150	200		1000	TO92
2N7052		Si	NPN	0.625	100	100	12	1.5	150	200		1000	TO92
2SC1074S		Si	NPN	0.3	60	50	7	0.15	150	180	2	120	TO92S
2SC1432		Si	NPN	0.3	30		10	0.3	175			40000	TO92
2SC1641		Si	NPN	0.3	40		5	0.15	150	125	4.5	390	TO92
2SC1642		Si	NPN	0.3	25		5	0.15	150	125	4.5	390	TO92
2SC1645		Si	NPN	0.3	40		6	0.3	150	125	3	1000	TO92
2SC1646		Si	NPN	0.3	25		6	0.3	150	125	3	1000	TO92
2SC1740		Si	NPN	0.3	50		5	0.1	175	90	2	120	TO92
2SC1740S		Si	NPN	0.3	60	50	7	0.15	150	100	2	120	TO92S
2SC1740S-Q		Si	NPN	0.3	60	50	7	0.15	150	100		120	TO92S
2SC1740S-R		Si	NPN	0.3	60	50	7	0.15	150	100		180	TO92S
2SC1740S-S		Si	NPN	0.3	60	50	7	0.15	150	100		270	TO92S
2SC1766		Si	NPN	0.31	30	30	5	0.1	150	115	3.5	150	TO92
2SC1766A		Si	NPN	0.31	30	30	5	0.1	150	115	3.5	150	TO92
2SC1811		Si	NPN	0.75	240	150	5	0.1	175	125	2.8	150	TO92
2SC1811-1		Si	NPN	0.75	240	150	5	0.1	150	125	2.8	150	TO92
2SC1811-2		Si	NPN	0.75	240	150	5	0.1	150	125	2.8	150	TO92
2SC1851		Si	NPN	0.625	30	25	5	1	175	100		160	TO92
2SC1852		Si	NPN	0.625	60	50	5	1	175	100		160	TO92
2SC1885		Si	NPN	0.75	150	150	5	0.1	150	100	3	150	TO92
2SC1991		Si	NPN	0.625	60		5	0.1	150	125	1.5	170	TO92
2SC1992		Si	NPN	0.3	50		6	0.1	150	150	3	235	TO92
2SC1993		Si	NPN	0.3	30		5	0.1	150	150	3	290	TO92
2SC1994		Si	NPN	0.3	45		5	0.1	150	150	3	380	TO92
2SC1995		Si	NPN	0.3	50		5	0.1	150	150	3	380	TO92
2SC1998		Si	NPN	0.5	80		6	0.1	150	150	3.7	140	TO92
2SC1999		Si	NPN	0.5	50		6	0.1	150	150	3.7	140	TO92
2SC2320L		Si	NPN	0.3	50	50	6	0.2	175	200	2.5	800	TO92
2SC2474		Si	NPN	0.6	60		6	0.2	150			150	TO92
2SC2475		Si	NPN	0.6	60		6	0.6	150			200	TO92
2SC2476		Si	NPN	0.6	30		5	0.2	150			150	TO92
2SC2477		Si	NPN	0.6	60		6	0.6	150			150	TO92
2SC2634		Si	NPN	0.4	60	60	7	0.1	150			180	TO92
2SC2720		Si	NPN	0.6	60		5	0.5	150	200	3.5	150	TO92
2SC2925		Si	NPN	0.75	60			0.7	150	125		1000	TO92
2SC3068		Si	NPN	0.6	30	25	15	0.3	175	250	4.5	800	TO92
2SC3069		Si	NPN	0.6	60	50	15	0.2	175	250	4	800	TO92
2SC3112		Si	NPN	0.4	50	50	5	0.15	175	100	3.5	600	TO92
2SC3112A		Si	NPN	0.4	50	50	5	0.15	200	100	3.5	600	TO92
2SC3112B		Si	NPN	0.4	50	50	5	0.15	150	100	3.5	1200	TO92
2SC3187		Si	NPN	0.75	300			0.1	150	140		120	TO92
2SC3226		Si	NPN	0.9	30		7	2	150	150		120	TO92
2SC3245		Si	NPN	0.9	120	120	5	0.1	175	200	2.3	150	TO92
2SC3245A		Si	NPN	0.9	150	150	5	0.1	150	200	2.3	150	TO92
2SC3311A		Si	NPN	0.3	60	50	7	0.1	150	150	3.5	160	TO92S
2SC3331S		Si	NPN	0.5	60	50	6	0.2	150	200	3	140	TO92
2SC3331T		Si	NPN	0.5	60	50	6	0.2	150	200	3	200	TO92
2SC3331U		Si	NPN	0.5	60	50	6	0.2	150	200	3	280	TO92
2SC3331V		Si	NPN	0.5	60	50	6	0.2	150	200	3	400	TO92
2SC3382S		Si	NPN	0.4	60	50	6	0.2	150	250	2.7	140	TO92
2SC3382T		Si	NPN	0.4	60	50	6	0.2	150	250	2.7	200	TO92
2SC3382U		Si	NPN	0.4	60	50	6	0.2	150	250	2.7	280	TO92
2SC3383S		Si	NPN	0.4	60	50	6	0.2	150	250	2.7	140	TO92
2SC3383T		Si	NPN	0.4	60	50	6	0.2	150	250	2.7	200	TO92
2SC3383U		Si	NPN	0.4	60	50	6	0.2	150	250	2.7	280	TO92
2SC3467F		Si	NPN	1	200	200	5	0.1	150	150	1.7	160	TO92
2SC3468F		Si	NPN	1	300	300	5	0.1	150	150	2.6	160	TO92
2SC3488G		Si	NPN	0.3	30	25	5	0.3	150	300		200	TO92
2SC3488Y		Si	NPN	0.3	30	25	5	0.3	150	300		120	TO92
2SC3655		Si	NPN	0.4	50	50	10	0.1	150	250		120	TO92
2SC3708S		Si	NPN	0.6	100	80	5	0.5	150	120	5	140	TO92
2SC3708T		Si	NPN	0.6	100	80	5	0.5	150	120	5	200	TO92
2SC3708U		Si	NPN	0.6	100	80	5	0.5	150	120	5	280	TO92
2SC3726		Si	NPN	0.9	50			2	155	150		1200	TO92
2SC3792		Si	NPN	0.5	50	20	25	0.5	150	250	4	300	TO92
2SC3923		Si	NPN	0.3	50	50	10	0.5	175	250	3.7	120	TO92
2SC4077		Si	NPN	0.3	30			0.1	150	230		350	TO92
2SC4115C		Si	NPN	0.3	40	20	6	3	150	200		120	TO92S
2SC4115S-Q	C4115	Si	NPN	0.3	40	20	6	3	150	200		120	TO92S
2SC4145		Si	NPN	1.2	80			2	150			200	TO92
2SC4169		Si	NPN	1	50	50	6	1.2	175			4000	TO92
2SC4781		Si	NPN	0.9	30	30	10	4	150	170			TO92
2SC945-GR		Si	NPN	0.4	60	50	5	0.15	150	150		200	TO92
2SC945-Y		Si	NPN	0.4	60	50	5	0.15	150	150		120	TO92
2SD1014		Si	NPN	0.9	50	50	50	2	150			150	TO92
2SD1015		Si	NPN	0.9	140	50	50	2	150			150	TO92
2SD1100		Si	NPN	0.9	20			2	150			400	TO92
2SD1140		Si	NPN	0.9	30	30	10	1.5	150			4000	TO92
2SD1146		Si	NPN	0.9	50			2	150			300	TO92
2SD1153		Si	NPN	0.9	80	50	10	1.5	150	120		6000	TO92
2SD1153A		Si	NPN	0.9	80	50	10	1.5	150	120		8000	TO92
2SD1209		Si	NPN	0.9	60			1	150			4000	TO92
2SD1387		Si	NPN	0.7	20			2	150			250	TO92
2SD1388		Si	NPN	0.7	60			1	150			250	TO92
2SD1489		Si	NPN	0.75	20			2	150			280	TO92
2SD1513		Si	NPN	0.75	20			2	150	200		350	TO92
2SD1698		Si	NPN	0.75	100			0.8	150			10000	TO92
2SD1701		Si	NPN	0.75	1700			0.8	150			10000	TO92
2SD1786		Si	NPN	0.9	40			2	150			20000	TO92
2SD1853		Si	NPN	0.7	80	60	6	1.5	150			2000	TO92
2SD1922		Si	NPN	0.9	25			0.8	150			600	TO92
2SD1929		Si	NPN	1.2	60			2	150			5000	TO92
2SD1930		Si	NPN	1.2	100			2	150			5000	TO92
2SD1931		Si	NPN	1.2	60			2	150			10000	TO92
2SD1978		Si	NPN	0.9	120			1.5	150			10000	TO92
2SD1981		Si	NPN	1	100	80	6	2	150			24000	TO92
2SD1984		Si	NPN	0.9	30			1	150			1500	TO92
2SD1991A		Si	NPN	0.4	60	50	7	0.1	150	150	3.5	160	TO92
2SD2030		Si	NPN	0.4	160			0.1	150			120	TO92
2SD2031		Si	NPN	0.4	200			0.1	150			150	TO92
2SD2046		Si	NPN	1	50			1.5	150			5000	TO92
2SD2068		Si	NPN	1	60			1	150			18000	TO92
2SD2074		Si	NPN	0.6	25			0.5	150			500	TO92
2SD2132		Si	NPN	0.9	25			0.5	150			560	TO92
2SD2152		Si	NPN	0.7	22	22	6	3	150	150		130	TO92
2SD2206A		Si	NPN	0.9		120		2				2000	TO92MOD
2SD2213		Si	NPN	0.9	150	80	8	1.5	150			1000	TO92MOD
2SD2227S		Si	NPN	0.3	60	50	12	0.15	150	250	3.5	820	TO92
2SD227G		Si	NPN	0.4	30	25	5	0.3	150	120		200	TO92
2SD227Y		Si	NPN	0.4	30	25	5	0.3	150	120		120	TO92
2SD261G		Si	NPN	0.5	40	20	5	0.5	150	160		200	TO92
2SD261Y		Si	NPN	0.5	40	20	5	0.5	150	160		120	TO92
2SD655		Si	NPN	0.5	30		5	0.7	150	250		250	TO92
2SD763		Si	NPN	0.9	120	60	5	1	150			150	TO92
2SD808		Si	NPN	0.4	25		5	500	150	250	3.2	120	TO92
2SD892		Si	NPN	0.4	30	25	5	0.5	175			10000	TO92
2SD892A		Si	NPN	0.4	60	25	5	0.5	175			10000	TO92
2SD893		Si	NPN	0.75	30	25	5	1	175			10000	TO92
2SD893A		Si	NPN	0.75	60	25	5	1	175			10000	TO92
2SD974		Si	NPN	0.9	120		5	1	150			150	TO92
2STL1360	L1360	Si	NPN	1.2	80	60	6	3	150	130		160	TO92L
2STX1360	X1360	Si	NPN	1	80	60	6	3	150	130		160	TO92
3DG1740S		Si	NPN	0.3	60	50	7	0.15	150	180	2	120	TO92S
3DG2240		Si	NPN	0.3	120	120	5	0.1	150	100	3	200	TO92
3DG3478		Si	NPN	0.75	200	180	5	0.1	150	100	2.6	135	TO92
3DG847B		Si	NPN	0.33	50	45	6	0.2	150	250		200	TO92 SOT23 TO18
8050C		Si	NPN	0.625	40	25	5	0.5	150	150		120	TO92
8050SS-C		Si	NPN	1	40	25	5	1.5	150	100		120	TO92
8050SS-D		Si	NPN	1	40	25	5	1.5	150	100		120	TO92
BC108AP		Si	NPN	0.3	30	20	5	0.1	175	150	5	120	TO92
BC108BP		Si	NPN	0.3	30	20	5	0.1	175	150	5	200	TO92
BC108CP		Si	NPN	0.3	30	20	5	0.1	175	150	5	420	TO92
BC108P		Si	NPN	0.3	30	20	5	0.1	175	150	5	120	TO92
BC109AP		Si	NPN	0.3	30	20	5	0.1	175	150	5	160	TO92
BC109BP		Si	NPN	0.3	30	20	5	0.1	175	150	5	200	TO92
BC109CP		Si	NPN	0.3	30	20	5	0.1	175	150	5	420	TO92
BC109P		Si	NPN	0.3	30	20	5	0.1	175	150	5	120	TO92
BC167		Si	NPN	0.3	45	45	6	0.1	150	85	5	120	TO92
BC167A		Si	NPN	0.3	45	45	6	0.1	150	85	5	120	TO92
BC167B		Si	NPN	0.3	45	45	6	0.1	150	85	5	180	TO92
BC168		Si	NPN	0.3	20	20	5	0.1	150	85	5	120	TO92
BC168A		Si	NPN	0.3	20	20	5	0.1	150	85	5	120	TO92
BC168B		Si	NPN	0.3	20	20	5	0.1	150	85	5	180	TO92
BC168C		Si	NPN	0.3	20	20	5	0.1	150	85	5	380	TO92
BC169		Si	NPN	0.3	20	20	5	0.1	150	85	5	240	TO92
BC169B		Si	NPN	0.3	20	20	5	0.1	150	85	5	240	TO92
BC169C		Si	NPN	0.3	20	20	5	0.1	150	85	5	380	TO92
BC182AP		Si	NPN	0.3	60	50	6	0.2	150	150	5	125	TO92
BC182BP		Si	NPN	0.3	60	50	6	0.2	150	150	5	240	TO92
BC182L		Si	NPN	0.3	60	50	5	0.2	150	150	5	120	TO92
BC182LA		Si	NPN	0.3	60	50	5	0.2	150	150	5	120	TO92
BC182LB		Si	NPN	0.3	60	50	5	0.2	150	150	5	240	TO92
BC183AP		Si	NPN	0.3	45	30	6	0.2	150	150	5	120	TO92
BC183BP		Si	NPN	0.3	45	30	6	0.2	150	150	5	240	TO92
BC183CP		Si	NPN	0.3	45	30	6	0.2	150	150	5	450	TO92
BC183L		Si	NPN	0.3	45	30	5	0.2	150	150	5	120	TO92
BC183LA		Si	NPN	0.3	45	30	5	0.2	150	150	5	120	TO92
BC183LB		Si	NPN	0.3	45	30	5	0.2	150	150	5	240	TO92
BC183LC		Si	NPN	0.3	45	30	5	0.2	150	150	5	450	TO92
BC184L		Si	NPN	0.3	45	30	5	0.2	150	150	5	240	TO92
BC184LB		Si	NPN	0.3	45	30	5	0.2	150	150	5	240	TO92
BC184LC		Si	NPN	0.3	45	30	5	0.2	150	150	5	450	TO92
BC238-92		Si	NPN	0.5	30	20	5	0.2	150		4.5	125	TO92
BC238A-92		Si	NPN	0.5	30	20	5	0.2	150		4.5	125	TO92
BC238B-92		Si	NPN	0.5	30	20	5	0.2	150		4.5	240	TO92
BC238C-92		Si	NPN	0.5	30	20	5	0.2	150		4.5	450	TO92
BC239-92		Si	NPN	0.5	30	20	5	0.2	150		4.5	240	TO92
BC239B-92		Si	NPN	0.5	30	20	5	0.2	150		4.5	240	TO92
BC239C-92		Si	NPN	0.6	30	20	5	0.2	150		4.5	450	TO92
BC337-025		Si	NPN	0.625		45		0.8		210		160	TO92
BC337-040		Si	NPN	0.625		45		0.8		210		250	TO92
BC385A		Si	NPN	0.3	45	45	6	0.1	150	150	5	125	TO92
BC385B		Si	NPN	0.3	45	45	6	0.1	150	150	5	240	TO92
BC386A		Si	NPN	0.3	30	20	6	0.1	150	150	5	125	TO92
BC386B		Si	NPN	0.3	30	20	6	0.1	150	150	5	240	TO92
BC4115		Si	NPN	0.4		20		2		150		180	TO92
BC413BP		Si	NPN	0.3	45	30	5	0.1	150	250	5	180	TO92
BC413CP		Si	NPN	0.3	45	30	5	0.1	150	250	5	380	TO92
BC414BP		Si	NPN	0.3	50	45	5	0.1	150	250	5	180	TO92
BC414CP		Si	NPN	0.3	50	45	5	0.1	150	250	5	380	TO92
BC445A		Si	NPN	0.625	60	60	6	0.2	150	100		120	TO92
BC447A		Si	NPN	0.625	80	80	6	0.3	150	100		120	TO92
BC447B		Si	NPN	0.625	80	80	6	0.3	150	100		180	TO92
BC449A		Si	NPN	0.625	100	100	5	0.3	150	100		120	TO92
BC449B		Si	NPN	0.625	100	100	5	0.3	150	100		180	TO92
BC517A3		Si	NPN	0.625	40	30	10	0.5	150	220	5	10000	TO92
BC517G		Si	NPN	1.5	40	30	10	1	150	200		30000	TO92
BC517P		Si	NPN	0.625	40	30	10	0.4	150	120	5	30000	TO92
BC517S		Si	NPN	0.625	40	30	10	1	150	200		33000	TO92
BC520		Si	NPN	0.625	60	60	8	0.1	150	100		180	TO92
BC520B		Si	NPN	0.625	60	60	8	0.1	150	100		180	TO92
BC520C		Si	NPN	0.625	60	60	8	0.1	150	100		380	TO92
BC521		Si	NPN	0.625	45	45	8	0.1	150	100		380	TO92
BC521C		Si	NPN	0.625	60	60	8	0.1	150	100		380	TO92
BC521D		Si	NPN	0.625	60	60	8	0.1	150	100		750	TO92
BC522		Si	NPN	0.625	30	30	8	0.1	150	100		750	TO92
BC522C		Si	NPN	0.625	30	30	8	0.1	150	100		400	TO92
BC522D		Si	NPN	0.625	30	30	8	0.1	150	100		750	TO92
BC523		Si	NPN	0.625	60	60	12	0.1	150	100		180	TO92
BC523B		Si	NPN	0.625	60	60	12	0.1	150	100		180	TO92
BC523C		Si	NPN	0.625	60	60	12	0.1	150	100		380	TO92
BC524		Si	NPN	0.625	45	45	8	0.1	150			240	TO92
BC524B		Si	NPN	0.625	45	45	8	0.1	150			240	TO92
BC524C		Si	NPN	0.625	45	45	8	0.1	150			450	TO92
BC546B		Si	NPN	0.5	80	65	6	0.1	150	150	4.5	200	TO92
BC546BBK		Si	NPN	0.5	80	65	5	0.1	150	300	3.5	150	TO92
BC546C		Si	NPN	0.625	80	65	6	0.1	150	150		420	TO92
BC547B		Si	NPN	0.5	50	45	6	0.1	150	200	4.5	200	TO92
BC547BA3		Si	NPN	0.625	60	50	6	0.2	150	100	2.1	200	TO92
BC547BBK		Si	NPN	0.5	50	45	5	0.1	150	300	3.5	150	TO92
BC547C		Si	NPN	0.5	50	45	6	0.1	150	200	4.5	420	TO92
BC547CBK		Si	NPN	0.5	50	45	5	0.1	150	300	3.5	270	TO92
BC548B		Si	NPN	0.5	30	30	6	0.1	150	200	4.5	200	TO92
BC548BBK		Si	NPN	0.5	30	30	5	0.1	150	300	3.5	150	TO92
BC548C		Si	NPN	0.5	30	30	6	0.1	150	200	4.5	420	TO92
BC548CBK		Si	NPN	0.5	30	30	5	0.1	150	300	3.5	270	TO92
BC549B		Si	NPN	0.5	30	30	6	0.1	150	200	4.5	200	TO92
BC549BBK		Si	NPN	0.5	30	30	5	0.1	150	300	3.5	150	TO92
BC549C		Si	NPN	0.5	30	30	6	0.1	150	200	4.5	420	TO92
BC549CBK		Si	NPN	0.5	30	30	5	0.1	150	300	3.5	270	TO92
BC550		Si	NPN	0.5	50	45	6	0.1	150	200		240	TO92
BC550B		Si	NPN	0.5	50	45	6	0.1	150	150		200	TO92
BC550C		Si	NPN	0.5	50	45	6	0.1	150	150		420	TO92
BC584		Si	NPN	0.3	50	20	5	0.2	150	150		250	TO92
BC585		Si	NPN	0.35	25	20	5	0.1	150			120	TO92
BC617		Si	NPN	0.625	50	40	12	1	150	150	4.5	10000	TO92
BC618		Si	NPN	0.625	80	55	12	1	150	150	4.5	3000	TO92
BC650		Si	NPN	0.625	30	30	6	0.1	150	100	3	400	TO92
BC650C		Si	NPN	0.625	30	30	6	0.2	160	100	3	380	TO92
BC650CS		Si	NPN	0.625	30	30	6	0.2	150	100	3	380	TO92
BC650D		Si	NPN	0.625	30	30	6	0.1	150	100	3	640	TO92
BC650DS		Si	NPN	0.625	30	30	6	0.2	150	100	3	680	TO92
BC650E		Si	NPN	0.625	30	30	6	0.1	150	100	3	900	TO92
BC650S		Si	NPN	0.625	30	30	6	0.2	150	100	3	380	TO92
BC651		Si	NPN	0.625	45	45	6	0.1	150	100	3	400	TO92
BC651C		Si	NPN	0.625	45	45	6	0.2	150	100	3	380	TO92
BC651CS		Si	NPN	0.625	45	45	6	0.2	150	100	3	380	TO92
BC651D		Si	NPN	0.625	45	45	6	0.1	150	100	3	640	TO92
BC651DS		Si	NPN	0.625	45	45	6	0.2	150	100	3	680	TO92
BC651E		Si	NPN	0.625	45	45	6	0.1	150	100	3	900	TO92
BC651S		Si	NPN	0.625	45	45	6	0.2	150	100	3	380	TO92
BC875		Si	NPN	0.8	60	45	5	1	150	200		1000	TO92
BC877		Si	NPN	0.8	80	60	5	1	150	200		1000	TO92
BC879		Si	NPN	0.8	100	80	5	1	150	200		1000	TO92
BCW51A		Si	NPN	0.3	50	30	5	0.2	150	200		250	TO92
BCW51B		Si	NPN	0.3	50	30	5	0.2	150	200		400	TO92
BCX58-10		Si	NPN	0.6	32	32	7	0.2	150	125	4.5	380	TO92
BCX58-7		Si	NPN	0.6	32	32	7	0.2	150	125	4.5	120	TO92
BCX58-8		Si	NPN	0.6	32	32	7	0.2	150	125	4.5	180	TO92
BCX58-9		Si	NPN	0.6	32	32	7	0.2	150	125	4.5	250	TO92
BCX59-10		Si	NPN	0.6	45	45	7	0.2	150	125	4.5	380	TO92
BCX59-7		Si	NPN	0.6	45	45	7	0.2	150	125	4.5	120	TO92
BCX59-8		Si	NPN	0.6	45	45	7	0.2	150	125	4.5	180	TO92
BCX59-9		Si	NPN	0.6	45	45	7	0.2	150	125	4.5	250	TO92
BRY56		Si	PNPN	0.3	70	70	70	0.175	150			1000	SOT54 TO92 SC43
BRY56A		Si	PNPN	0.3	70	70	70	0.175	150			1000	SOT54 TO92 SC43
BSR50		Si	NPN	0.8	60	45	5	2	150	175		2000	TO92
BSR51		Si	NPN	0.8	80	60	5	2	150	175		2000	TO92
BSR52		Si	NPN	0.8	100	80	5	1	150	175		4000	TO92
BSW88B		Si	NPN	0.3	35	30	5	0.1	150		5	250	TO92
BTC9014A3		Si	NPN	0.45	50	45	5	0.1	150	150	3.5	200	TO92
BTNA14A3		Si	NPN	0.625	30	30	10	0.5	150	125		20000	TO92
CC337-25		Si	NPN	0.625		45	5	0.8	150	200	5	160	TO92
CC337-40		Si	NPN	0.625		45	5	0.5	150	200	5	250	TO92
CC338-25		Si	NPN	0.625		25	5	0.8	150	200	5	160	TO92
CC338-40		Si	NPN	0.625		25	5	0.5	150	200	5	250	TO92
CD9014C		Si	NPN	0.625	50	50	5	0.1	150	125	3.5	200	TO92
CD9014D		Si	NPN	0.625	50	50	5	0.1	150	125	3.5	400	TO92
CD9014D1		Si	NPN	0.625	50	50	5	0.1	150	125	3.5	400	TO92
CD9014D2		Si	NPN	0.625	50	50	5	0.1	150	125	3.5	570	TO92
CD9014D3		Si	NPN	0.625	50	50	5	0.1	150	125	3.5	760	TO92
CD9014E		Si	NPN	0.625	50	50	5	0.1	150	125	3.5	800	TO92
CE1N2R		Si	NPN	1	60	60	15	2	150			1000	TO92
CE2F3P		Si	NPN	1	60	60	15	2	150			1000	TO92
CIT8050D		Si	NPN	0.625		20		2		280		200	TO92
CS1245I		Si	NPN	0.8	25	20		1.5	150	120		120	TO92
CS1245J		Si	NPN	0.8	25	20		1.5	150	120		140	TO92
CS1245K		Si	NPN	0.8	25	20		1.5	150	120		160	TO92
CS1245L		Si	NPN	0.8	25	20		1.5	150	120		180	TO92
CS1245M		Si	NPN	0.8	25	20		1.5	150	120		200	TO92
CS1245N		Si	NPN	0.8	25	20		1.5	150	120		220	TO92
CS1245O		Si	NPN	0.8	25	20		1.5	150	120		240	TO92
CS1245P		Si	NPN	0.8	25	20		1.5	150	120		260	TO92
CS1245Q		Si	NPN	0.8	25	20		1.5	150	120		280	TO92
CS1245R		Si	NPN	0.8	25	20		1.5	150	120		300	TO92
CS1245S		Si	NPN	0.8	25	20		1.5	150	120		320	TO92
CS1245T		Si	NPN	0.8	25	20		1.5	150	120		340	TO92
CS9127		Si	NPN	0.5	30	30	6	0.1	150	200	4.5	150	TO92
CSC1684		Si	NPN	0.4	30	25	7	0.1	150	150	3.5	160	TO92
CSC1684Q		Si	NPN	0.4	30	25	7	0.1	150	150	3.5	160	TO92
CSC1684R		Si	NPN	0.4	30	25	7	0.1	150	150	3.5	200	TO92
CSC1684S		Si	NPN	0.4	30	25	7	0.1	150	150	3.5	290	TO92
CSC1685		Si	NPN	0.4	60	50	7	0.1	150	150	3.5	160	TO92
CSC1685Q		Si	NPN	0.4	60	50	7	0.1	150	150	3.5	160	TO92
CSC1685R		Si	NPN	0.4	60	50	7	0.1	150	150	3.5	200	TO92
CSC1685S		Si	NPN	0.4	60	50	7	0.1	150	150	3.5	290	TO92
CSC1740		Si	NPN	0.3	60	40	5	0.1	150	180	3.5	120	TO92
CSC1740S		Si	NPN	0.3	60	40	5	0.1	150	180	3.5	270	TO92
CSC2229		Si	NPN	0.625		150		0.5		120		120	TO92
CSC2229Y		Si	NPN	0.625	200	150	5	0.5	150	120	3.5	120	TO92
CSC2229YBP		Si	NPN	0.8		150		0.5		120		120	TO92
CSC2240		Si	NPN	0.3	120	120	5	0.1	150	100	3	200	TO92
CSC2240BL		Si	NPN	0.3	120	120	5	0.1	150	100	3	350	TO92
CSC2240GR		Si	NPN	0.3	120	120	5	0.1	150	100	3	200	TO92
CSC2274F		Si	NPN	0.6	100	80	5	0.5	150	120	5	160	TO92
CSC3114S		Si	NPN	0.4		50		0.15		100		140	TO92
CSC3114T		Si	NPN	0.4		50		0.15		100		200	TO92
CSC3114U		Si	NPN	0.4		50		0.15		100		280	TO92
CSC3331TU		Si	NPN	0.5		50		0.2		200		200	TO92
CSC536F		Si	NPN	0.4		30		0.1		100		160	TO92
CSC536G		Si	NPN	0.4		30		0.1		100		280	TO92
CSC536H		Si	NPN	0.4		30		0.1		100		480	TO92
CSC536KF		Si	NPN	0.4		50		0.1		100		160	TO92
CSC536KG		Si	NPN	0.4		50		0.1		100		280	TO92
CSC536KH		Si	NPN	0.4		50		0.1		100		480	TO92
CSC815G		Si	NPN	0.4	60	45	5	0.2	150	100	4	200	TO92
CSC815Y		Si	NPN	0.4	60	45	5	0.2	150	100	4	120	TO92
CSD471G		Si	NPN	0.8		30		1		130		200	TO92
CSD471Y		Si	NPN	0.8		30		1		130		120	TO92
CX901		Si	NPN	0.5	45			0.5	150	200		120	TO92
CX904C		Si	NPN	0.3	45			0.1	150	200		120	TO92
CX904D		Si	NPN	0.3	45			0.1	150	200		140	TO92
CX904E		Si	NPN	0.3	45			0.1	150	200		160	TO92
CX906B		Si	NPN	0.5	45			0.5	150	200		120	TO92
CX906C		Si	NPN	0.5	45			0.5	150	200		140	TO92
CX906D		Si	NPN	0.5	45			0.5	150	200		160	TO92
CX908B		Si	NPN	0.625	45			1	150	150		120	TO92
CX908C		Si	NPN	0.625	45			1	150	150		140	TO92
CX908D		Si	NPN	0.625	45			1	150	150		160	TO92
D32S1		Si	NPN	0.4	30	30	5	0.1	150			120	TO92
D32S10		Si	NPN	0.4	60	60	5	0.1	150			200	TO92
D32S2		Si	NPN	0.4	30	30	5	0.1	150			160	TO92
D32S3		Si	NPN	0.4	30	30	5	0.1	150			180	TO92
D32S4		Si	NPN	0.4	45	45	5	0.1	150			120	TO92
D32S5		Si	NPN	0.4	45	45	5	0.1	150			160	TO92
D32S6		Si	NPN	0.4	45	45	5	0.1	150			180	TO92
D32S7		Si	NPN	0.4	60	60	5	0.1	150			120	TO92
D32S8		Si	NPN	0.4	60	60	5	0.1	150			160	TO92
D32S9		Si	NPN	0.4	60	60	5	0.1	150			180	TO92
D33D27		Si	NPN	0.5	50	40	5	0.75	150	100		120	TO92
D33J27		Si	NPN	0.5	50	40	5	0.75	150	150		120	TO92
D3851-4		Si	NPN	0.4	40	30		0.1	150	100	4	400	TO92
D3858-10		Si	NPN	0.4	70	60		0.1	150	100	4	250	TO92
D38S1		Si	NPN	0.4	30	30	7	0.1	150	100	4	400	TO92
D38S10		Si	NPN	0.4	60	60	7	0.1	150	100	4	4000	TO92
D38S2		Si	NPN	0.4	30	30	7	0.1	150	100	4	1000	TO92
D38S3		Si	NPN	0.4	30	30	7	0.1	150	100	4	2000	TO92
D38S4		Si	NPN	0.4	30	30	7	0.1	150	100	4	10000	TO92
D38S5		Si	NPN	0.4	45	45	7	0.1	150	100	4	400	TO92
D38S6		Si	NPN	0.4	45	45	7	0.1	150	100	4	1000	TO92
D38S7		Si	NPN	0.4	45	45	7	0.1	150	100	4	4000	TO92
D38S8		Si	NPN	0.4	60	60	7	0.1	150	100	4	400	TO92
D38S9		Si	NPN	0.4	60	60	7	0.1	150	100	4	1000	TO92
D965		Si	NPN	0.75	42	22	6	5	150	150		340	TO92
D965-R		Si	NPN	0.75	42	22	6	5	150			340	TO92
D965-T		Si	NPN	0.75	42	22	6	5	150			340	TO92
DKS21		Si	NPN	0.6	30	20	5	0.5	150	200		5000	TO92
DKS22		Si	NPN	0.6	30	20	5	0.5	150	200		12000	TO92
ECG11		Si	NPN	0.75	40	20		5	150	150		200	TO92
ECG123AP		Si	NPN	0.5	75	40		0.8	175	300		200	TO92
ECG192		Si	NPN	0.7	70	70		1	150	120		150	TO92
ECG192A		Si	NPN	0.6	70	70		0.5	150	120		120	TO92
ECG199		Si	NPN	0.35	70	50		0.1	150	90		400	TO92
ECG2341		Si	NPN	0.8		80		1	150			2000	TO92
ECG293		Si	NPN	0.75	60	50		1	150	200		120	TO92
ECG297		Si	NPN	0.75	80	80		0.7	150	120		130	TO92
ECG382		Si	NPN	0.9	120	100		1	150	140		200	TO92
ECG46		Si	NPN	0.625		100		0.5	150	200		10000	TO92
ECG47		Si	NPN	0.35	45	45		0.2	150	140		500	TO92
ECG48		Si	NPN	1		50		1	150	100		25000	TO92
ECG85		Si	NPN	0.6	70	70		0.4	150	200		120	TO92
ED8050C		Si	NPN	0.3	30	20	5	1.5	150	100	1.7	120	TO92
ED8550C		Si	NPN	0.3	30	20	5	1.5	150	100	1.7	120	TO92
FTC3200		Si	NPN	0.625	120	120	5	0.1	150	100	3	200	TO92
GC195		Si	NPN	0.625	40	30	10	0.4	150	120	5	50000	TO92
GES2483		Si	NPN	0.36	60	60		0.1	150	200	4	175	TO92
GES3403		Si	NPN	0.56	25	25	5	0.5	150			180	TO92
GES3405		Si	NPN	0.56	50	50	5	0.5	150			180	TO92
GES3415		Si	NPN	0.36	25	25	5	0.5	150			180	TO92
GES3417		Si	NPN	0.36	50	50	5	0.5	150			180	TO92
GES6224		Si	NPN	0.36	60	60	5	0.1	150			150	TO92
GST2SD965	D965	Si	NPN	0.75	42	22	6	5	150	150		340	TO92
H1740		Si	NPN	0.3	50	40	5	0.1	150	180(TYP)	1.2	120	TO92
H237		Si	NPN	0.5	50	45	6	0.1	150	85(TYP)	3.5	120	TO92
H238		Si	NPN	0.5	30	25	5	0.1	150	85	3.5	120	TO92
H3200		Si	NPN	0.3	120	120	5	0.1	150	100(TYP)	3	200	TO92
H732TM		Si	NPN	0.4	60	50	5	0.15	150	150(TYP)	2	200	TO92
HBC517		Si	NPN	0.625	40	30	10	0.5	150	220	5	30000	TO92
HEPS0005		Si	NPN	0.31	180	160		0.6	150	200		160	TO92
HEPS0036		Si	NPN	0.35	40	40		0.1	150	125		200	TO92
HEPS9100		Si	NPN	0.5	30			0.3	150	200		20000	TO92
HIT667		Si	NPN	0.9	120	100	6	1	150			140	TO92MOD
HM28S		Si	NPN	0.85	40	20	6	1.25	150			300	TO92
JC546B		Si	NPN	0.5	80	65	6	0.1	150	300	2.5	200	TO92
JC547B		Si	NPN	0.5	50	45	6	0.1	150	300	2.5	200	TO92
JC547C		Si	NPN	0.5	50	45	6	0.1	150	300	2.5	420	TO92
JC548B		Si	NPN	0.5	30	30	5	0.1	160	300	2.5	200	TO92
JC548C		Si	NPN	0.5	30	30	5	0.1	150	300	2.5	420	TO92
JC549		Si	NPN	0.5	30	30	5	0.1	150	300	2.5	200	TO92
JC549B		Si	NPN	0.5	30	30	5	0.1	150	300	2.5	200	TO92
JC549C		Si	NPN	0.5	30	30	5	0.1	150	300	2.5	420	TO92
JC550		Si	NPN	0.5	50	45	5	0.1	150	300	2.5	200	TO92
JC550C		Si	NPN	0.5	50	45	5	0.1	150	300	2.5	420	TO92
JE8050		Si	NPN	2	40	25		1.5	175	190		160	TO92
JE8050C		Si	NPN	1	40	25		1.5	175	190		120	TO92
JE8050D		Si	NPN	1	40	25		1.5	175	190		160	TO92
JE9014C		Si	NPN	0.625	50	45		0.1	150	270	3.7	200	TO92
JE9014D		Si	NPN	0.625	50	45		0.1	150	270	3.7	400	TO92
JE9100D		Si	NPN	0.625	60	60		0.1	150	300	1.6	125	TO92
JE9100E		Si	NPN	0.625	60	60		0.1	150	300	1.6	150	TO92
JE9100F		Si	NPN	0.625	60	60		0.1	150	300	1.6	180	TO92
JE9100G		Si	NPN	0.625	60	60		0.1	150	300	1.6	240	TO92
JE9101C		Si	NPN	0.625	40	30		0.1	150	300	1.6	180	TO92
JE9101D		Si	NPN	0.625	40	30		0.1	150	300	1.6	350	TO92
JE9113C		Si	NPN	2	35	25		1.5	175	140		120	TO92
JE9113D		Si	NPN	2	35	25		1.5	175	140		160	TO92
KRC110		Si	Pre-Biased-NPN	0.625	50	50	5	0.1	150	250		120	TO92
KRC110M		Si	Pre-Biased-NPN	0.4	50	50	5	0.1	150	250		120	TO92M
KRC111		Si	Pre-Biased-NPN	0.625	50	50	5	0.1	150	250		120	TO92
KRC111M		Si	Pre-Biased-NPN	0.4	50	50	5	0.1	150	250		120	TO92M
KRC112		Si	Pre-Biased-NPN	0.625	50	50	5	0.1	150	250		120	TO92
KRC112M		Si	Pre-Biased-NPN	0.4	50	50	5	0.1	150	250		120	TO92M
KRC113		Si	Pre-Biased-NPN	0.625	50	50	5	0.1	150	250		120	TO92
KRC113M		Si	Pre-Biased-NPN	0.4	50	50	5	0.1	150	250		120	TO92M
KRC114		Si	Pre-Biased-NPN	0.625	50	50	5	0.1	150	250		120	TO92
KRC114M		Si	Pre-Biased-NPN	0.4	50	50	5	0.1	150	250		120	TO92M
KSC2710G		Si	NPN	0.3	40	20	5	0.5	150			200	TO92
KSC2710Y		Si	NPN	0.3	40	20	5	0.5	150			120	TO92
KSC3488G		Si	NPN	0.3	30	25	5	0.3	150			200	TO92
KSC3488Y		Si	NPN	0.3	30	25	5	0.3	150			120	TO92
KSC815G		Si	NPN	0.4	60	45	5	0.2	150	100	4	200	TO92
KSC815Y		Si	NPN	0.4	60	45	5	0.2	150	100	4	120	TO92
KSD227G		Si	NPN	0.4	30	25	5	0.3	150			200	TO92
KSD227Y		Si	NPN	0.4	30	25	5	0.3	150			120	TO92
KSD261G		Si	NPN	0.5	40	20	5	0.5	150			200	TO92
KSD261Y		Si	NPN	0.5	40	20	5	0.5	150			120	TO92
KSP12		Si	NPN	0.625	20	20	10	0.5	150			20000	TO92
KSP13		Si	NPN	0.625	30	30	10	0.5	150	125		5000	TO92
KSP14		Si	NPN	0.625	30	30	10	0.5	150	125		10000	TO92
KSP25		Si	NPN	0.625	40	40	10	0.5	150			10000	TO92
KSP26		Si	NPN	0.625	50	50	10	0.5	150			10000	TO92
KSP8097		Si	NPN	0.625	60	40	6	0.2	150		4	250	TO92
KTC1026		Si	NPN	1		180		0.1	175			120	TO92
KTC3200		Si	NPN	0.625		120		0.1	175			200	TO92
KTC3400		Si	NPN	0.625		120		0.1	175			200	TO92
KTD1145		Si	NPN	1		20		5	175			140	TO92
KTD1146		Si	NPN	0.625		20		5	175			120	TO92
KTD1302	BJ	Si	NPN	0.625		20		0.3	175			200	TO92
KTD1303		Si	NPN	0.4		20		0.3	175			200	TO92
LBC546		Si	NPN	0.5	80	65	6	0.1	150	200	4.5	125	TO92
LBC546B		Si	NPN	0.5	80	65	6	0.1	150	150	4.5	200	TO92
LBC547B		Si	NPN	0.5	50	45	6	0.1	150	200	4.5	200	TO92
LBC547C		Si	NPN	0.5	50	45	6	0.1	150	200	4.5	420	TO92
LBC548B		Si	NPN	0.5	30	30	6	0.1	150	200	4.5	200	TO92
LBC548C		Si	NPN	0.5	30	30	6	0.1	150	200	4.5	420	TO92
LBC549B		Si	NPN	0.5	30	30	6	0.1	150	200	4.5	200	TO92
LBC549C		Si	NPN	0.5	30	30	6	0.1	150	200	4.5	420	TO92
LBC550		Si	NPN	0.5	50	45	6	0.1	150	200		240	TO92
LBC550B		Si	NPN	0.5	50	45	6	0.1	150	150		200	TO92
LBC550C		Si	NPN	0.5	50	45	6	0.1	150	150		420	TO92
M28S-B	X	Si	NPN	0.625	40	20	6	1	150	100		300	TO92
M28S-C	X	Si	NPN	0.625	40	20	6	1	150	100		500	TO92
M28S-D	X	Si	NPN	0.625	40	20	6	1	150	100		650	TO92
M28ST		Si	NPN	0.625	40	20	6	1	150	100		290	TO92
M8050-C	Y11	Si	NPN	0.625	40	25	6	0.8	150	150		120	TO92
M8050-D	Y11	Si	NPN	0.625	40	25	6	0.8	150	150		160	TO92
MPS3403		Si	NPN	0.56	25	25	5	0.5	150			180	TO92
MPS3405		Si	NPN	0.56	50	50	5	0.5	150			180	TO92
MPS3415		Si	NPN	0.5	25	25	5	0.5	150			180	TO92
MPS3417		Si	NPN	0.5	50	50	5	0.5	150			180	TO92
MPS4124		Si	NPN	0.625	30	25	5	0.2	150	170	4	120	TO92
MPSA113		Si	NPN	0.625	30	30	10	0.5	150	125		30000	TO252 TO92
MPSA13G		Si	NPN	0.625	30	30	10	0.5	150	125		10000	TO92 SOT89
MPSA13RLRAG		Si	NPN	0.625	30	30	10	0.5	150	125		10000	TO92
MPSA13RLRMG		Si	NPN	0.625	30	30	10	0.5	150	125		10000	TO92
MPSA13RLRPG		Si	NPN	0.625	30	30	10	0.5	150	125		10000	TO92
MPSA13ZL1G		Si	NPN	0.625	30	30	10	0.5	150	125		10000	TO92
MPSA14G		Si	NPN	0.625	30	30	10	0.5	150	125		20000	TO92
MPSA14RLRAG		Si	NPN	0.625	30	30	10	0.5	150	125		20000	TO92
MPSA14RLRPG		Si	NPN	0.625	30	30	10	0.5	150	125		20000	TO92
MPSA18		Si	NPN	0.31	45	45		0.1	150	100		800	TO92
MPSA18RLRAG		Si	NPN	0.63	45	45	6.5	0.2	150	100		500	TO92
MPSA18RLRMG		Si	NPN	0.63	45	45	6.5	0.2	150	100		500	TO92
MPSA29G		Si	NPN	0.625	100	100	12	0.5	150	125	5	10000	TO92
MPSA29RLRPG		Si	NPN	0.625	100	100	12	0.5	150	125	5	10000	TO92
MPSD04		Si	NPN	0.35		25		0.3	150	100		1000	TO92
MPSW13		Si	NPN	1	30	30	10	1	150	125		10000	TO92
MPSW14		Si	NPN	1	30	30	10	1	150	125		20000	TO92
NB112EI		Si	NPN	0.6	55	50	5	0.1	150	100	4	140	TO92
NB112EJ		Si	NPN	0.6	55	50	5	0.1	150	100	4	200	TO92
NB112FI		Si	NPN	0.6	55	50	5	0.1	150	100	4	140	TO92
NB112FJ		Si	NPN	0.6	55	50	5	0.1	150	100	4	200	TO92
NB112HI		Si	NPN	0.6	55	50	5	0.1	150	100	4	140	TO92
NB112HJ		Si	NPN	0.6	55	50	5	0.1	150	100	4	200	TO92
NB113EI		Si	NPN	0.6	70	65	5	0.1	150	100	4	140	TO92
NB113EJ		Si	NPN	0.6	70	65	5	0.1	150	100	4	200	TO92
NB113FI		Si	NPN	0.6	70	65	5	0.1	150	100	4	140	TO92
NB113FJ		Si	NPN	0.6	70	65	5	0.1	150	100	4	200	TO92
NB113HI		Si	NPN	0.6	70	65	5	0.1	150	100	4	140	TO92
NB113HJ		Si	NPN	0.6	70	65	5	0.1	150	100	4	200	TO92
NPS3403		Si	NPN	0.56	25	25	5	0.5	150			180	TO92
NPS3405		Si	NPN	0.56	50	50	5	0.5	150			180	TO92
NPS3415		Si	NPN	0.5	25	25	5	0.5	150			180	TO92
NPS3417		Si	NPN	0.5	50	50	5	0.5	150			180	TO92
NPS4124		Si	NPN	0.625	30	25	5	0.2	150	170	4	120	TO92
NTE172A		Si	NPN	0.4	40	40	12	0.3				7000	TO92
NTE2341		Si	NPN	1	100	80	7	1				2000	TO92
NTE382		Si	NPN	0.9	120	100		1		140		200	TO92M
NTE46		Si	NPN	0.625	100	100	12	0.5				10000	TO92
NTE48		Si	NPN	1	60	50	12	1				25000	TO92
PN3403		Si	NPN	0.56	25	25	5	0.5	150			180	TO92
PN3405		Si	NPN	0.56	50	50	5	0.5	150			180	TO92
PN3415		Si	NPN	0.5	25	25	5	0.5	150			180	TO92
PN3417		Si	NPN	0.5	50	50	5	0.5	150			180	TO92
PN4124		Si	NPN	0.625	30	25	5	0.2	150	170	4	120	TO92
RN1210		Si	Pre-Biased-NPN	0.3	50	50	5	0.1	150	250	3	120	TO92
RN1211		Si	Pre-Biased-NPN	0.3	50	50	5	0.1	150	250	3	120	TO92
S1420		Si	NPN	0.5	60	60	7	0.2	150	150		120	TO92
S8050C		Si	NPN	0.625	40	25	5	0.5	150	150		120	TO92
S8050D		Si	NPN	0.625	40	25	5	0.5	150	150		160	TO92
S9013H		Si	NPN	0.625	40	25	5	0.5	150	150		144	TO92
S9013I		Si	NPN	0.625	40	25	5	0.5	150	150		190	TO92
S9014C		Si	NPN	0.4	50	45	5	0.1	150	150		200	TO92
S9014D		Si	NPN	0.4	50	45	5	0.1	150	150		400	TO92
SK3245		Si	NPN	0.4	70	50	5	0.1		90		400	TO92
SK3275		Si	NPN	0.6	160	140	6	0.6		200		200	TO92
SK3449		Si	NPN	0.8	80	80	5	0.4		120		160	TO92M
SK3849		Si	NPN	1	60	50	5	1.5		200		120	TO92
SK3854		Si	NPN	1.2	75	40	6	0.8		300		200	TO92
SK9137		Si	NPN	0.9	120	100	5	1		140		200	TO92M
SK9142		Si	NPN	1	70	70	5	1		150		150	TO92
SM2284		Si	NPN	1		25		1.2	200	220		800	TO92
SM2285		Si	NPN	1		100		0.2	200	150		600	TO92
SML2182		Si	NPN	0.36		120		5	200	200		400	TO92
SRC1210		Si	Pre-Biased-NPN	0.625		50		0.1	150	200		120	TO92
SRC1210M	1210	Si	Pre-Biased-NPN	0.4		50		0.1	150	200		120	TO92M
SRC1211		Si	Pre-Biased-NPN	0.625		50		0.1	150	200		120	TO92
SRC1211M	1211	Si	Pre-Biased-NPN	0.4		50		0.1	150	200		120	TO92M
SRC1212		Si	Pre-Biased-NPN	0.625		50		0.1	150	200		120	TO92
SRC1212M	1212	Si	Pre-Biased-NPN	0.4		50		0.1	150	200		120	TO92M
SS8050-C		Si	NPN	1	40	25	5	1.5	150	190		120	TO92
SS8050-D		Si	NPN	1	40	25	5	1.5	150	190		160	TO92
STX112		Si	NPN	1.2	100	100	5	2	150			1000	TO92
TBC546		Si	NPN	0.5	80	65	6	0.1	150	200	4.5	125	TO92
TBC550		Si	NPN	0.5	50	45	6	0.1	150	200		240	TO92
TEC9013H		Si	NPN	0.625	30	25	5	0.8	150			144	TO92
TEC9013I		Si	NPN	0.625	30	25	5	0.8	150			176	TO92
TEC9013J		Si	NPN	0.625	30	25	5	0.8	150			214	TO92
TEC9014C		Si	NPN	0.625	60	50	5	0.15	150	150	3.5	200	TO92
TEC9014D		Si	NPN	0.625	60	50	5	0.15	150	150	3.5	400	TO92
TED1402B		Si	NPN	0.4	60	50	5	0.15	150	175	1.9	150	TO92
TED1402C		Si	NPN	0.4	60	50	5	0.15	150	175	1.9	202	TO92
TED1402D		Si	NPN	0.4	60	50	5	0.15	150	175	1.9	290	TO92
TED1402E		Si	NPN	0.4	60	50	5	0.15	150	175	1.9	414	TO92
TIPK110		Si	NPN	0.8	60	60	5	2	150			1000	TO92
TIPK111		Si	NPN	0.8	80	80	5	2	150			1000	TO92
TIPK112		Si	NPN	0.8	100	100	5	2	150			1000	TO92
TIPK115		Si	NPN	0.8	60	60	5	2	150			1000	TO92
TIPK116		Si	NPN	0.8	80	80	5	2	150			1000	TO92
TIPK117		Si	NPN	0.8	100	100	5	2	150			1000	TO92
TIPP110		Si	NPN	0.8	60	60	5	2	150			1000	TO92
TIPP111		Si	NPN	0.8	80	80	5	2	150			1000	TO92
TIPP112		Si	NPN	0.8	100	100	5	2	150			1000	TO92
TIS97		Si	NPN	0.5	40	40	7	0.1	150	125	3.5	250	TO92

Diğer Transistör Çeşitlerini Transistör Çeşitleri Kategorisinde bulabilirsiniz.



NOT: Ürün görseli temsilidir.

Elektronik malzeme ihtiyaçlarınızı en uygun fiyatlarla BBC Elektronik'den güvenle satın alabilirsiniz. Toplu sipariş vermek yada fiyat teklifi almak için info@bbcelektronik.com adresine e-mail atabilir 0534 363 53 30 WhatsApp hattından yada +90 0212 320 90 26 numaralı telefondan bizimle iletişime geçebilirsiniz.
