2SD965 TransistörNPN BJT TO-92

Type Designator: 2SD965

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.75 W

Maximum Collector-Base Voltage |Vcb|: 40 V

Maximum Collector-Emitter Voltage |Vce|: 20 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 5 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 75 MHz

Collector Capacitance (Cc): 30 pF

Forward Current Transfer Ratio (hFE), MIN: 180

Noise Figure, dB: -

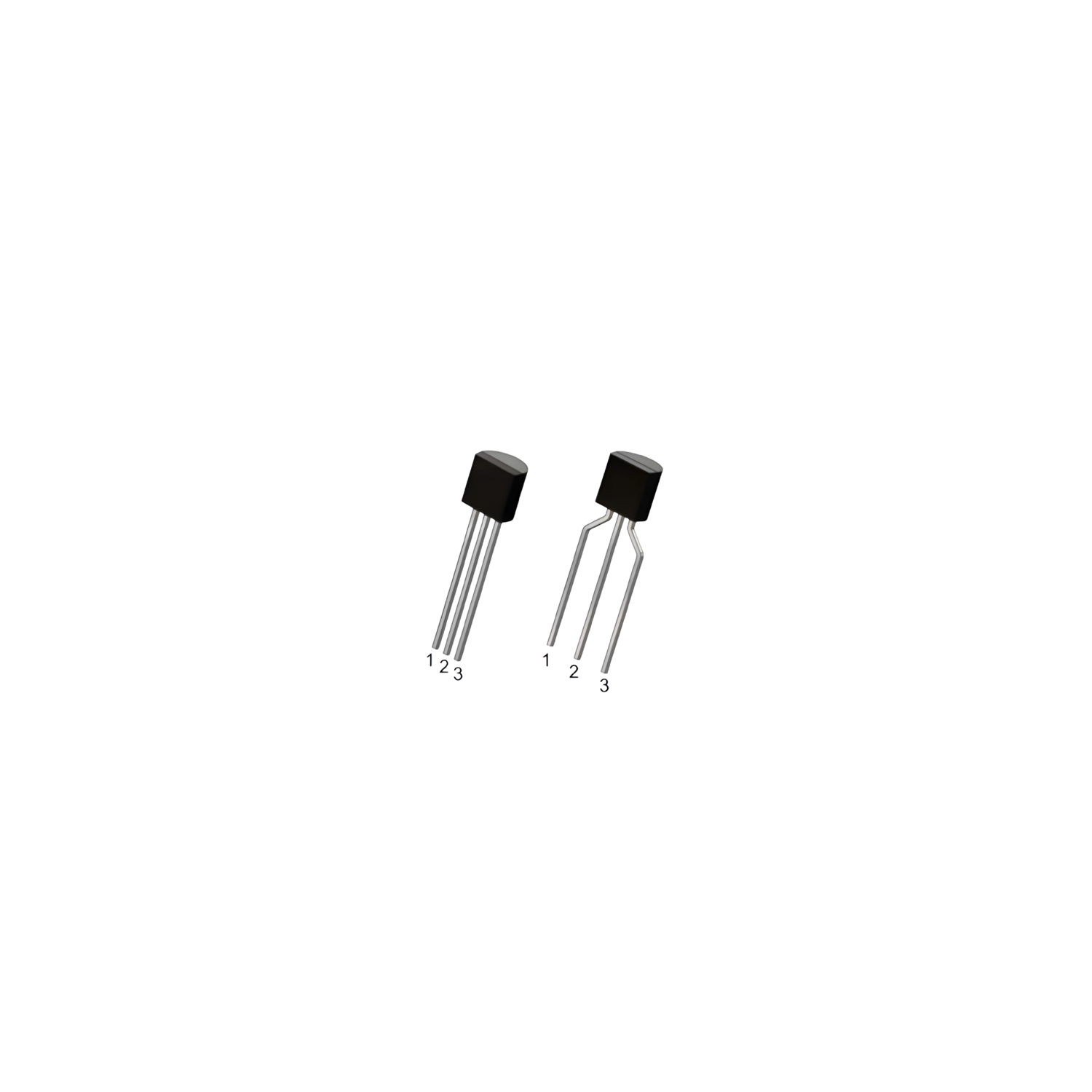

Package: TO92
